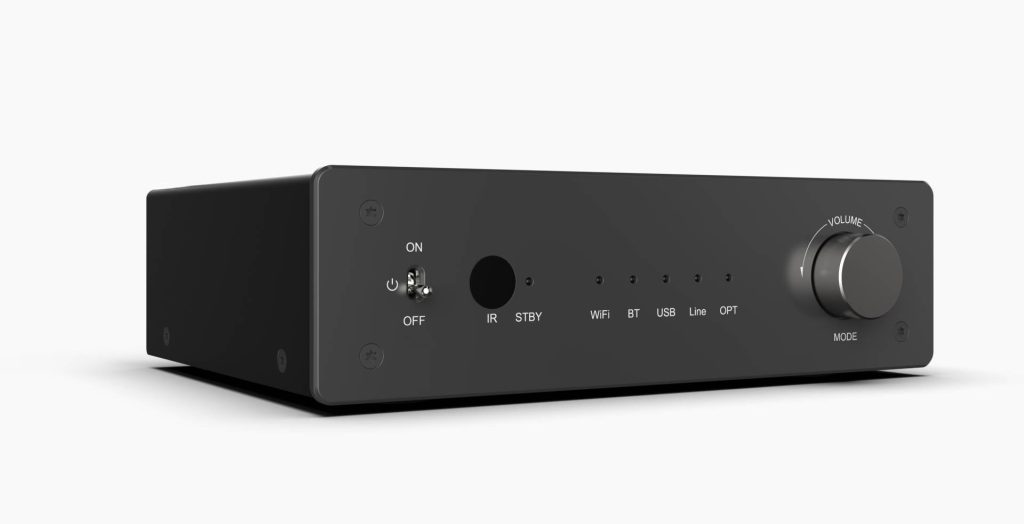

MM1100A 1 Zone Audio Amplifier

MM1100A 1 Zone Audio Amplifier
Exceptional Audio Performance

MSRP
1499$

Description

The MM1100A is a freestanding, 1 zone amplifier designed for custom multi-room sound distribution. Its intelligently engineered and versatile design integrates easily into high-end whole house audio systems with support of Apple Airplay 2.

Features

  • Stable Class D design delivers superior audiophile sound quality and performance
  • Supports 8 @ 40 watts per channel or 4ohms @ 80watts per channel
  • Independent and bus inputs provides unparalleled flexibility
  • Independent channel gain controls allow the output of each speaker to be perfectly matched
  • Multi-stage protection circuitry for reliability and easy troubleshooting of audio system
  • Apple Airplay 2 Compatible
  • Online Music Services support such as Sportify, Deezer, Tidal, Amazon Music, Qobuz, Napstar, iHeartradio, Internet Radio and QQ Music.
  • Temperature controlled cooling fans
  • ENERGY STAR and CE EuP directive compliant, consumes less than 1/2 a watt in standby

Specifications

Weight:2KG (4.4lbs)
Dimension:Ø114.7×107.5x37mm (Ø4.5″x4.23″””x1.45″)
Frequency Response5 Hz to 72 kHz
Power Output40 Watts per channel RMS at 8 ohms
80 Watts per channel RMS at 4 ohms
Output Channels8
Signal-to-Noise Ratio105 dB A-weighted
THD @ Rated Power.005% THD 20 Hz-20 kHz @ 40W (8 ohm)
.010% THD 20 Hz-20 kHz @ 80W (4 ohm)
Voltage Requirement115/230 VAC. 60/50 Hz
Auto-on Sensitivity13.7mV
Stand-by Power Rating115V. 0.264W
Special FeaturesMulti-stage protection circuitry
Rack mountable
Digital EQ
ModelMM1100A
